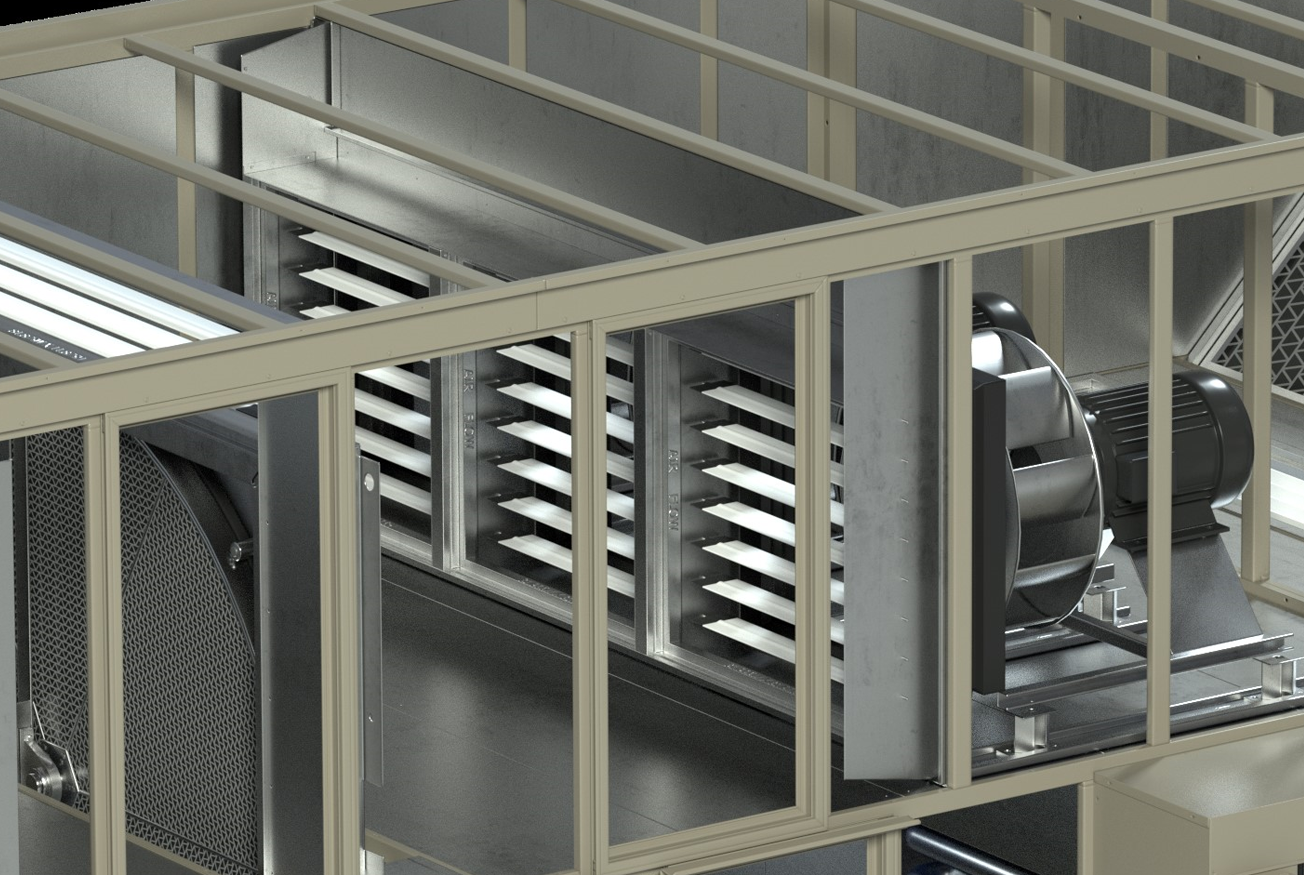

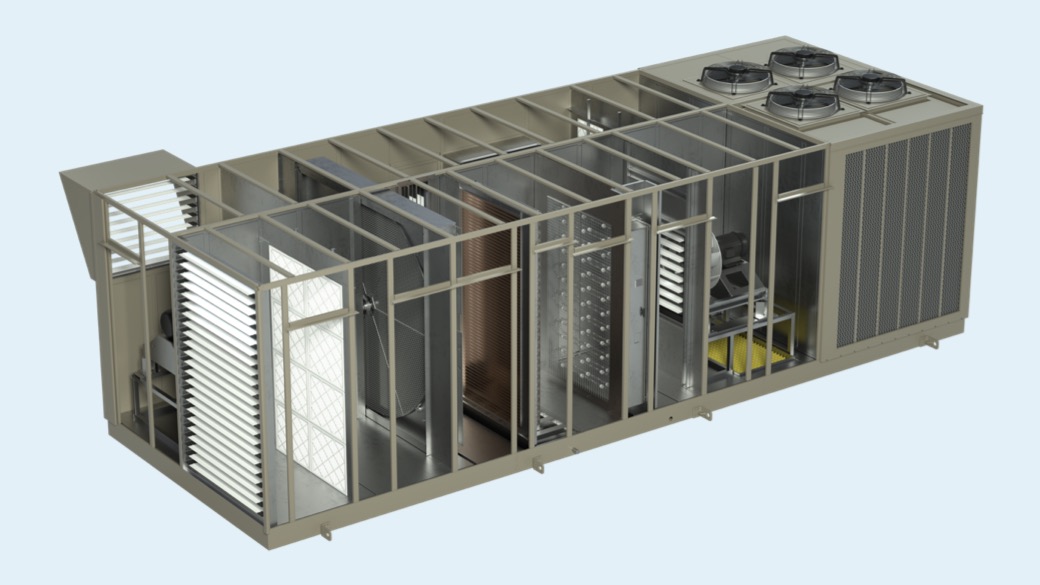

Indirect fired furnace: Innovent can provide duct type or drum type indirect fired furnaces as well as direct fired furnaces. Bypass Plenum Cooling coil: Innovent can provide chilled water or DX cooling as well as indirect or direct evaporative cooling. Air cooled condensing section: Innovent can provide units with integral air cooled condensing sections as well as water cooled and water souce heat pumps. The integral refrigeration requires no field piping and also allows the refrigeration to be sized for exactly the amount of cooling you require. Energy Recovery Wheel: Wheels provide both sensible and latent energy recovery. Wheels are rotating equipment, so require maintenance, but transfer humidity as well as heat. Supply air filter: A minimum of 30% efficiency outside air filters are recommended for all air handlers. Innovent has the ability to provide all types of filtration, including HEPA, carbon, cartridge, and bag filters. Return air dampers: For heat wheels, a minium of 30% efficiency return air dampers are required. Innovent has the ability to provide all types of filtration, including HEPA, carbon, cartridge, and bag filters. Supply fan: An air foil plenum fan is shown. Innovent can provide the fan type needed for the appplication, including forward curved double-width double-inlet fans and backward inclined single-width single-inlet fans. Heat exchanger face and bypass damper: Face and bypass dampers are used for defrost control and to minimize the energy recovery of a device, for example during economizer operation. Plate Heat Exchanger: Provides sensible only energy recovery, requires low maintance.
